Relay Pull Attachment Action

The RelayPullAttachmentAction, is used to pull a Relay Power-up file attachment submission (e.g. images, files). Once downloaded, the action will automatically create a new Salesforce ContentDocument and link it to the object specified by the Linked Entity Id property.

This flow action is always executed in a background job. If an error occurs during the attachment download, a record will be created in the RelayLog__c custom object.

WARNING

This action makes an external callout to Relay Network. Please be aware of any impacts this has against your Salesforce API limits. Salesforce Callout Limits

Action Properties

Field	Description
RelayPowerups__c event	A Relay power-up event record with the Name field value of Powerups Data Artifact Available. Typically, this is the record that triggered the flow. This event record contains specific details about the file attachment.
Description	A description of the file attachment. This will populated on the created ContentDocument record.
DocumentLink Share Type	The permission granted to the user of the shared file in a library. This is determined by the permission the user already has in the library. If this field is not provided, then the value of V will be used. Valid values are: V — Viewer permission. The user can explicitly view but not edit the shared file. This is the default value if not provided. C — Collaborator permission. The user can explicitly view and edit the shared file. You can retrieve the ShareType for ContentDocumentLink, but you can't create a ContentDocumentLink with a ShareType of C from an Apex trigger. I — Inferred permission. The user’s permission is determined by the related record. For shares with a library, this is defined by the permissions the user has in that library. Inferred permission on shares with libraries and file owners is available in API versions 21.0 and later. Inferred permission on shares with standard objects is available in API versions 36.0 and later. See Salesforce docs: ContentDocumentLink
Document Link Visibility	Specifies whether this file is available to all users, internal users, or shared users. If this field is not provided, then the default value of AllUsers will be used. Valid values are: AllUsers — The file is available to all users who have permission to see the file. This is the default value if not provided. InternalUsers — The file is available only to internal users who have permission to see the file. SharedUsers — The file is available to all users who can see the feed to which the file is posted. SharedUsers is used only for files shared with users, and is available only when an org has private org-wide sharing on by default. The SharedUsers value is available in API version 32.0 and later. See Salesforce docs: ContentDocumentLink
Linked Entity Id	Required. This field identifies the Salesforce entity (record) that will be linked to the ContentDocument. For example, this could be the Id field of a Person Account object. See Salesforce docs: ContentDocumentLink

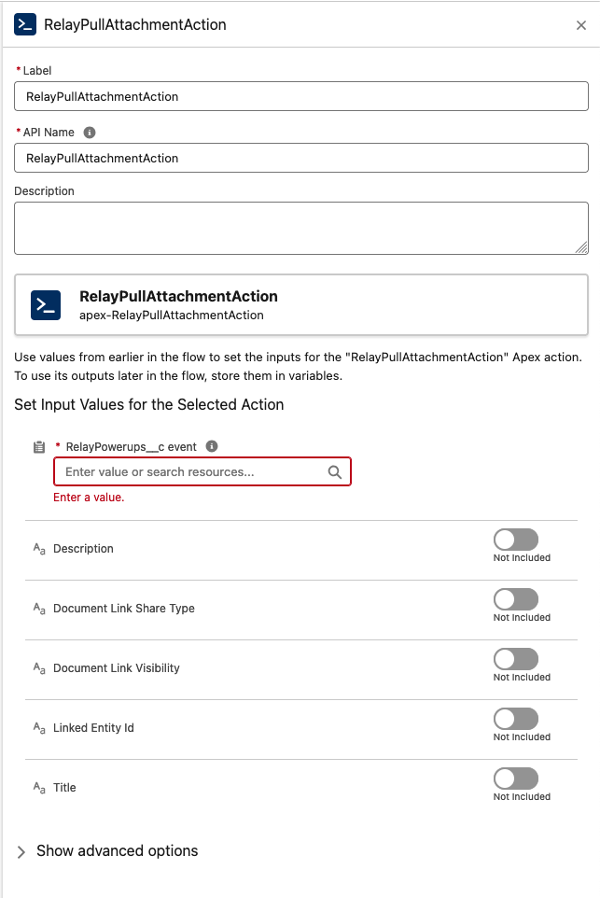

Action Property Dialog

Action Response Variable

This action returns a custom Relay object RelayPullAttachmentAction.PullAttachmentResponse.

Field	Description
statusCode	Valid values are: 202: Accepted, the attachment will be downloaded in a background job. The statusMessage field will contain the value Accepted. 400: There was an error with one of the request parameters. Review the statusMessage field for a description of the error.
statusMessage	A description related to the returned statusCode.

Field

Description

statusCode

Valid values are:

202: Accepted, the attachment will be downloaded in a background job. The statusMessage field will contain the value Accepted.
400: There was an error with one of the request parameters. Review the statusMessage field for a description of the error.

statusMessage

A description related to the returned statusCode.
